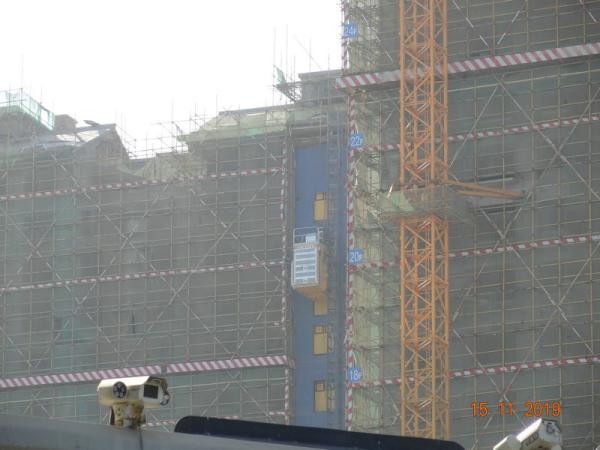

Passenger and Material Hoist SC200 VFD TUV Approved Double Cage KP-B08
Features
*The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Many users of construction hoists worry about water leakage of
hoist cage in rainy season. They have to make the water proof layer
on cage roof regularly to solve the leakage problem.
But KANGBO users don't need to do water proof works by themselves
because the edges of KANGBO hoist cage roof are totally and fully
welded.
The users don't need to do water proof by themselves regularly.
*The structure of elevator cars are reinforced.
Standard Configuration
There is a electrical small crane available to facilitate the
assembly of the construction elevator.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with
Interlock.
Optional Configuration
Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar)
specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control
System, with functions of fault detect, display and alarm, and
automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is
availble.
Technical Data
| Item & Article No. | SC200/200BZ, KP-B08 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450m |
| Cage Width (internal) | 1.5m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 KW per Cage |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake SAJ40 |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
|
|
