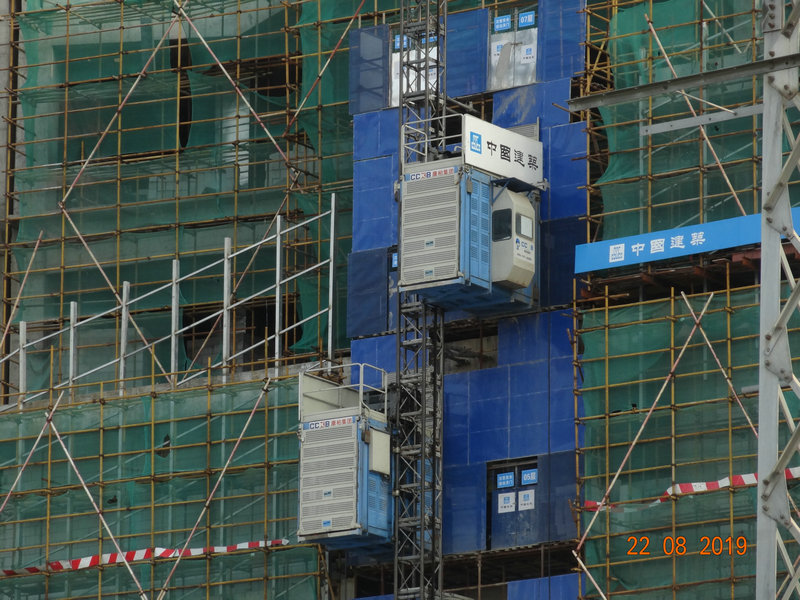

Twin Cage Safety 450m Rack And Pinion Hoist
Rack And Pinion Hoist Introduction
SC series of construction elevators are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and high towers.
This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers labor intensity.
Rack And Pinion Hoist Configuration
There is a small crane for conenient assembly of the construction
lift.
There is the additional 'C' door at cage side for convenient
loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED lamp
The construction material hoist cage roof doors are equipped with
Interlock.
Equipped with hoist drop test facility with remote control.
Rack And Pinion Hoist Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
|
|
