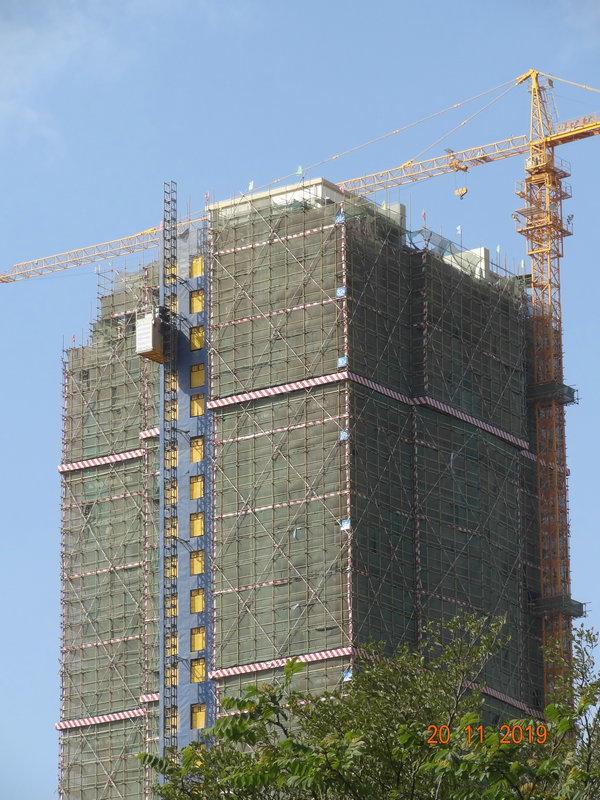

Construction Site 2,000KG Per Cage Man Material Hoist
Man Material Hoist Major Components:
A. Base Frame
B. Base Level Enclosure
C. Mast
D. Cage
E. Driving Device
F. Electrical System
G. Jib Attachment
H. Mast Tie
I. Cable Guiding Device
Man Material Hoist Production and Materials
KANGBO implements the true modular design of rack and pinion
hoists, standardization and fine finishing of lifts parts and spare
parts, and assembly line production. The material elevator
components are versatile and universal.
The construction material elevator structural parts are made of
16Mn and Q345 high strength steel.
Man Material Hoist Configuration
There is a electrical small crane available to facilitate the
assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with
Interlock.
Equipped with hoist drop test facility with remote control.
Man Material Hoist Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 Man Material Hoist |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
|
|
