| Brand Name : | KANGBO |
| Model Number : | Passenger and material hoist rack pinion SC200BG MP-B09 SC200/200BG MP-B10 |
| Certification : | TUV, CCC |
| Price : | Negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 25-30 days per month |

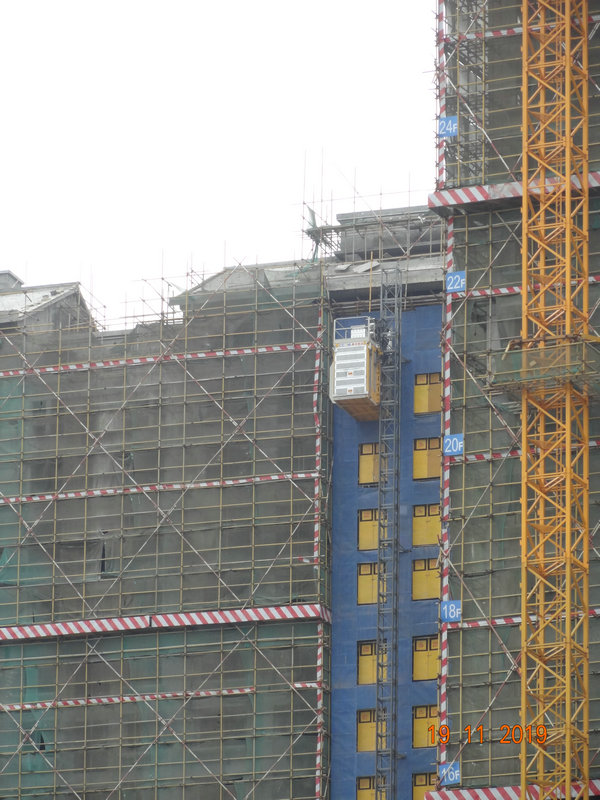

Larger Hoisting Height Double Cages Goods Passenger Lifts
Goods Passenger Lifts Introduction
1. Larger hoisting height, stronger transportation capacity
2. Equipped with fully safety devices to guarantee the safe working. Stable running and comfortable adaptability.
3. Variable -frequency construction elevator are safe, steady and comfortable.
4. The transmission system adopted three drive motors and three sets of reduction gears.
5. Imported Electrical components are adopted for the circuit control system. It is especially reliable and safe becasue of the mechanical overload limiting unit adopted.
6. The close standard section has the superior rust and damp resistance, easy assembly and disassembly.
7. This product has no counter weight, dismantling easily and working safetly.
Goods Passenger Lifts Configuration
There is a electrical small crane available to facilitate the
assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient
loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Goods Passenger Lifts Technical Data
| Item & Article No. | SC200BG, MP-B09; SC200/200BG, MP-B10 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
|
|
