| Brand Name : | KANGBO |
| Model Number : | SC200BG KP-B11, SC200/200BG KP-B12 |
| Certification : | TUV |
| Price : | In USD |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 30 days |

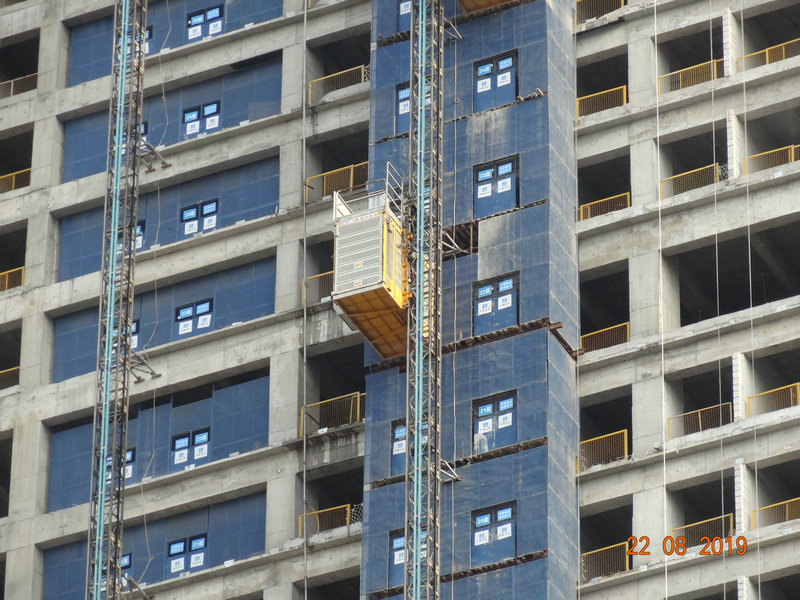

Inland Cruise Ships PLC Control Rack And Pinion Hoist
Rack And Pinion Hoist Introduction
1). Monitor control unit
2). Weight limit device
3). Fall protection device
4). Microcomputer speed device
5). GPS fixing system
6). Floor select system
7). Floor calling system
8). Floor pausing protection device
Rack And Pinion Hoist Configuration
There is a electrical small crane available to facilitate the
assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
Rack And Pinion Hoist Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
|
|
