Construction Site Trasportation VFD Rack & Pinion Lift
Rack & Pinion Lift Introduction

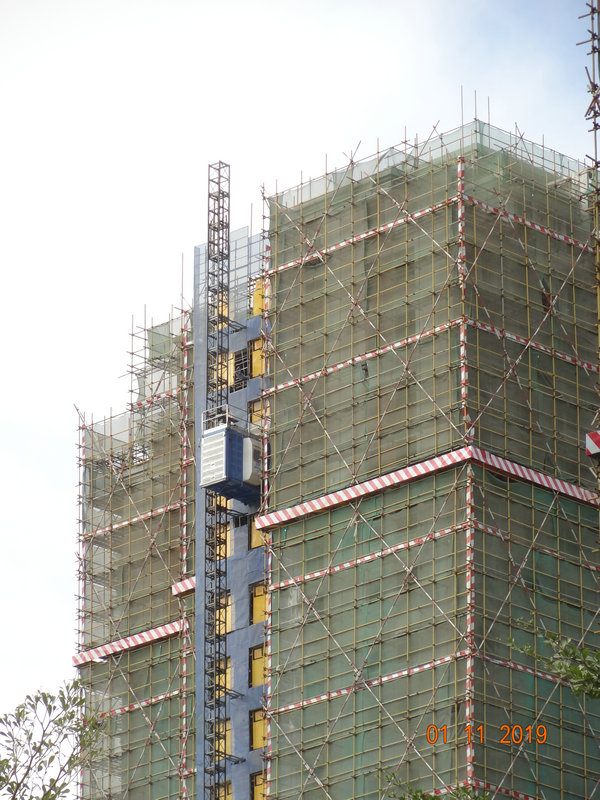

The building hoist can be widely used in industrial and civilian construction, bridge, under well, big chimney as well as shipping industry to carry people and materials. As permanent or semi-permanent equipment, elevator can be used in different sites such as warehouse, high tower, etc.
With the advantages of reliable performance, safety, easy carrying, high adaptability, it can reduce operators' work intensity.
With many advanced technology integrity, strict control on each making process, high ratio of price and quality, UNIQUE building hoist has become a symbol of lifter with high quality and excellent after-sales service.
Rack & Pinion Lift Features
* Applying non-eccentric rollers, make the installation of
construction site elevators be faster and easier, with much less
error.
* The integrated elevator car roof, which made by a steel plate
with edges fully welded one time to complete, enhance hoist cage
strength and ensure no water leakage.
* The additional big size third door at the cage side let the users
to use fork trucks to load/unload extremely heavy and big size
materials.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* Frequency control unit (FC), with closed-loop, which gives the
passenger and material hoists very smooth starting and stopping
with low starting current and less wear and tear.
Rack & Pinion Lift Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 Rack & Pinion Lift |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
|
|
