Supply the world class Construction Lifts for the users. TUV approved products. Xiamen Comwinning Imp. & Exp. Co., Ltd. / KANGBO MACHINERY GROUP
7 Years
| Ask Lasest Price | |
| Brand Name : | KANGBO |
| Model Number : | Construction hoist elevator rack and pinion SC300BG KP-B15 SC300-300BG KP-B16 |
| Certification : | TUV |
| Price : | In USD |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 25-30 days |

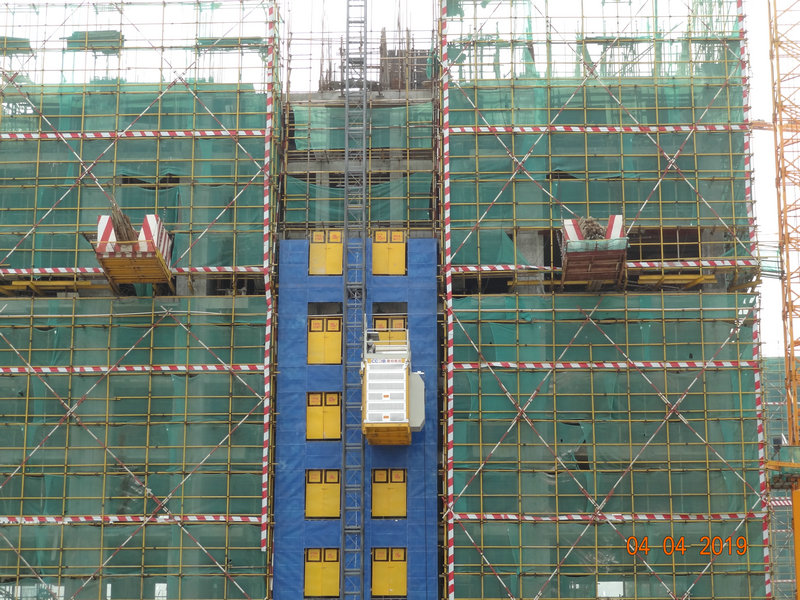

FC Motor Control Modular Construction Passenger Lift
Construction Passenger Lift Main Features
Adjustable speed construction hoist elevator
1) Rely on motor drive gear, rolling up and down on the gear.
2) Advanced technology at home and abroad, with novel design,
reasonable structure, simple operation and easy maintenance.
3) The use of famous brands at home and abroad.
4)With perfect pre-sale, sale, and after sale service.
Construction Passenger Lift Advantages
* The modular and standardizing system makes the Kangbo
construction elevators be flexible, efficient, safe, productive,
low energy consumptive and ownership cost, making them the best
choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man
and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown
and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and
pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders
hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of
construction site elevators be faster and easier, with much less
error.
* The integrated elevator car roof, which made by a steel plate
with edges fully welded one time to complete, enhance hoist cage
strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities,
including centrifugal brake, limit switches, Electromechanical
interlocks.
Construction Passenger Lift Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Construction Passenger Lift |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
|
|
