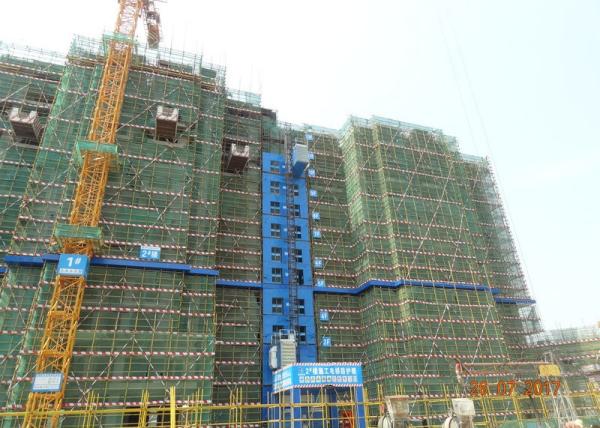

Anti Fall Protection Q345B Steel Rack And Pinion Elevator

Rack And Pinion Elevator Manufacturing Technique

1. Guide rail system
Guide rail system made of 20# steel that is 4.5mm thick.

2. Gear rack
The gear rack is made of 55# steel and its service life is more than 10 years.

3. Power system
The operating time of the construction hoist is 10 to 15 years.

4. Safety devices
a. Fall arrest device
b. Loading capacity limiter
c. Limit switch
d. Upper limit protection device
e. Lower limit protection device
f. Door limit protection device
g. Escaping window limit protection device
h. Bell warning device
i. Emergency stop protection device
j. Buffering protection device
k. Motor overload protector
l. Transformer short-circuit protection device
m. Phase sequence protection device

5. Cable
We employ genuine GB cable that is guaranteed on quality.

6. Electrical system
The main devices in the electrical system are all Name Brands, like Schneider, Siemens.
a. The fan installed helps dissipate the heat effectively.
b. With a time delay relay, the construction lift can stop smoothly and steadily.
c. Alarm bell informs users of the starting of the fall arrest device.
d. Failure warning light will send light signals when there is a failure of the motor or electrical system.

7. Protection fence
The outside fence and fence gate are built with plastic-sprayed perforated plate.

8. Additional scaling ladder
For each construction hoist, two scaling ladders are added to the drive system to ensure more convenient and flexible
installation.

Rack And Pinion Elevator Optional Configuration

Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.

Rack And Pinion Elevator Technical Data

Xiamen KANGBO Machinery Group Co., Ltd., has been specializing in manufacturing Construction Hoists and Hoist Spare Parts for more than 20 years.

Products: Construction Hoists and Spare Parts

Capacity: Annual sales quantity is more than 3500 units Construction Hoist.

With experianced mechanical and electrical engineers, skillful technicians, and the most advanced equipments, it is the leading manufacturer of Construction Hoist and its Spare Parts in China.

Most of the welding of the construction lifts are finished by welding robots.
Parts of the construction elevators are finely processed by Computer Numerical Control machine tools.
Sand blasting and baking paint for finishing.

KANGBO produces its own patented helical gearbox and safety device and, has its own test centre for safety devices. There are test platforms for testing and improving all its vertical transportation equipment.
KANGBO construction lifts are TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009, and also obtained CCC certificate for domestic market.
The company has obtained ISO 9001:2000 international quality management system certifications.
The products have been supplied to domestic and overseas markets, and enjoy a prestigious reputation.

Products exported by: Xiamen Comwinning Import and Export Company, Ltd.
