Supply the world class Construction Lifts for the users. TUV approved products. Xiamen Comwinning Imp. & Exp. Co., Ltd. / KANGBO MACHINERY GROUP
7 Years
| Ask Lasest Price | |
| Brand Name : | KANGBO |
| Model Number : | construction site hoist rack and pinion type SC300BG MP-B15 SC300/300BG MP-B16 |
| Certification : | TUV, CCC |
| Price : | Negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 25-30 days |

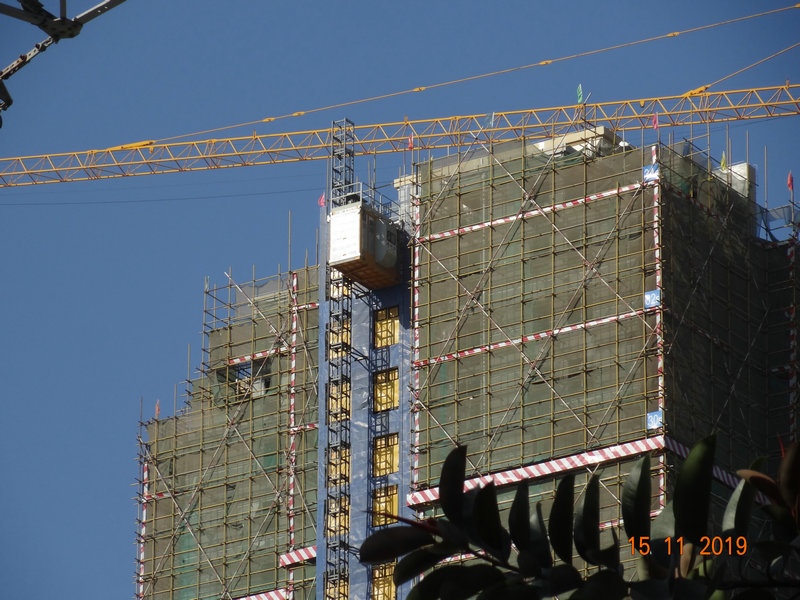

Construction site hoist rack and pinion type SC300BG MP-B15 SC300/300BG MP-B16
It is the truly modular rack and pinion hoist design, so the
elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is
available.
The modular and standardizing system makes the Kangbo construction
elevators be flexible, efficient, safe, productive, low energy
consumptive and ownership cost, making them the best choice for
both construction and rental companies.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
There is the additional 'C' door at cage side for convenient loading/unloading.
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
|
|
