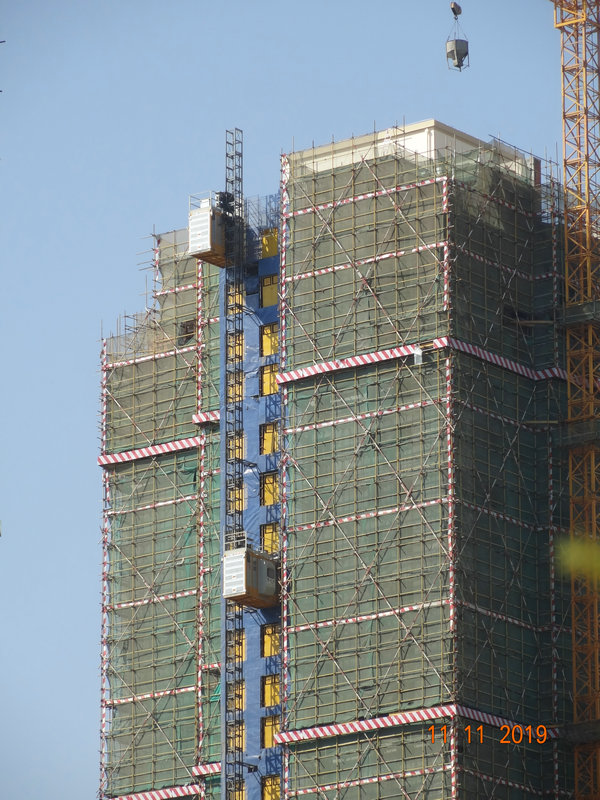

Construction site hoist rack and pinion high speed heavy payload SC250BG KP-B19
Production and Materials
KANGBO implements the true modular design of rack and pinion
hoists, standardization and fine finishing of lifts parts and spare
parts, and assembly line production. The material elevator
components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold
roll steel plate, cut by laser, process by CNC machines in tool
fixtures, welded by robots.
The construction lift cage roof is made of a full steel plate, and
the edges of the roof are totally welded by robot, to ensure never
water leakage and higher strength of the construction hoist cage.
Standard Configuration
There is a small crane for conenient assembly of the construction
lift.
In single cage configuration.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Technical Data
| Item & Article No. | SC250(BG) KP-B19 |
| Payload Capacity | 2,500 KG per Cage |
| Lifting Speed | 0–80 m/min. |
| Max. Lifting Height | 250/450 m* |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Motor Control | FC control |
| Engine Power | 3x38 KW per Cage |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
| Optional Configuration | ||
| Power Supply | Slide Contact Line System (Busbar) | |
| Floor Selection | Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.) | |
| TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | ||
|
|
