Supply the world class Construction Lifts for the users. TUV approved products. Xiamen Comwinning Imp. & Exp. Co., Ltd. / KANGBO MACHINERY GROUP
7 Years
| Ask Lasest Price | |
| Brand Name : | KANGBO |
| Model Number : | Rack Pinion VFD SC100/100(BZ) KP-B02 |
| Certification : | TUV |
| Price : | Negotiate in USD |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 30 days |

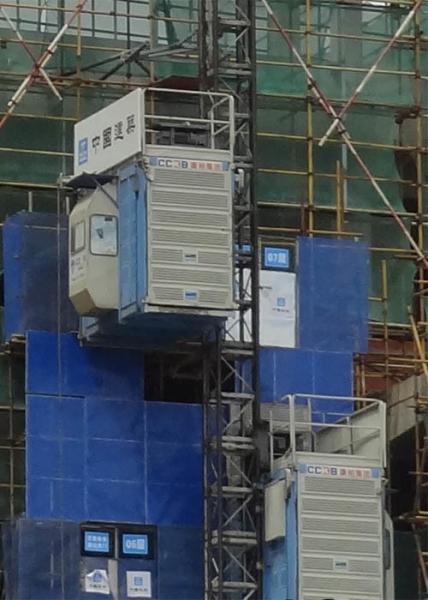

Construction site hoist rack pinion type twin cage VFD SC100/100(BZ) KP-B02
Features and Advantages
* The modular and standardizing system makes the Kangbo
construction elevators be flexible, efficient, safe, productive,
low energy consumptive and ownership cost, making them the best
choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man
and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown
and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and
pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders
hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of
construction site elevators be faster and easier, with much less
error.
* The integrated elevator car roof, which made by a steel plate
with edges fully welded one time to complete, enhance hoist cage
strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities,
including centrifugal brake, limit switches, Electromechanical
interlocks.
* Frequency control unit (FC), with closed-loop, which gives the
passenger and material hoists very smooth starting and stopping
with low starting current and less wear and tear.
TUV proved according to European Regulation EN 12159:2012, EN
60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC200/200(BD) KP-B02 |
| Payload capacity | 1,000 kg |
| Lifting speed | 0–54 m/min. |
| Max. lifting height | 250/400 m* |
| Cage quantity | 2 cages |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x2x15 kw |
| Gearbox | Helical reducer, Pieli brand |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
| Art. No. | Model | Payload (KG) | Lifting Speed (m/min) | Motor Power (KW) | Invertor Power (KW) | Max Height (M) | Invertor Brand | Motor | Gear Box | Voltage & Frequency |
| KP-B01 | SC100(BZ) | 1000 | 0-54 | 15×2 | 37×1 | 450 | Schneider | Chinese | PIELI Helical Gear Box | 380–500 V, 50 or 60 Hz, 3 Phase |
| KP-B02 | SC100/100(BZ) | 1000 | 0-54 | 15×2×2 | 37×2 | 450 | Schneider | Chinese | PIELI Helical Gear Box | 380–500 V, 50 or 60 Hz, 3 Phase |
|
|
