| Brand Name : | KANGBO |
| Model Number : | Rack and pinion hoist material elevator SC200BD MP-B05 SC200/200BD MP-B06 |
| Certification : | TUV, CCC |
| Price : | Negotiate |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 25-30 days |

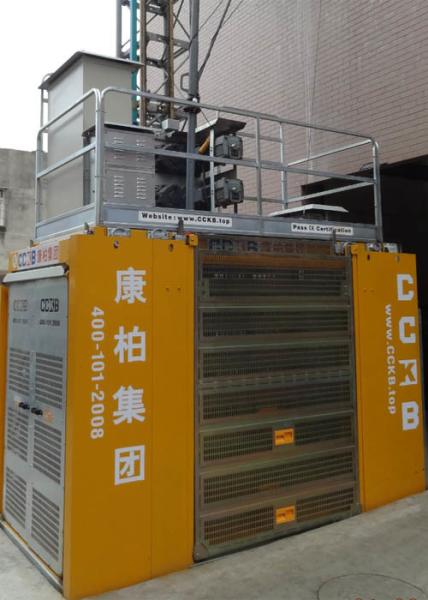

Rack and pinion hoist material elevator SC200BD MP-B05 SC200/200BD MP-B06
Configuration
There is a small crane for conenient assembly of the construction
lift.
There is the additional 'C' door at cage side for convenient
loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency
Drive (VFD), with low starting current and much less wear and tear,
very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED lamp
The construction material hoist cage roof doors are equipped with
Interlock.
Equipped with hoist drop test facility with remote control.
Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
|
|
