    35 Mm² Circular Arc Rail Bus Bar For Tower Crane Slewing Power Supply

    Ask Lasest Price
    Brand Name : DABIAO COMWINNING
    Model Number : BHFS-5W-35A/165 35mm²
    Certification : CE
    Price : In USD
    Payment Terms : T/T, L/C
    Supply Ability : 1000 sets per month
    Delivery Time : 7 - 10 days
    • Product Details
    • Company Profile

    35 Mm² Circular Arc Rail Bus Bar For Tower Crane Slewing Power Supply

    35 Mm² Circular Arc Rail Bus Bar For Tower Crane Slewing Power Supply

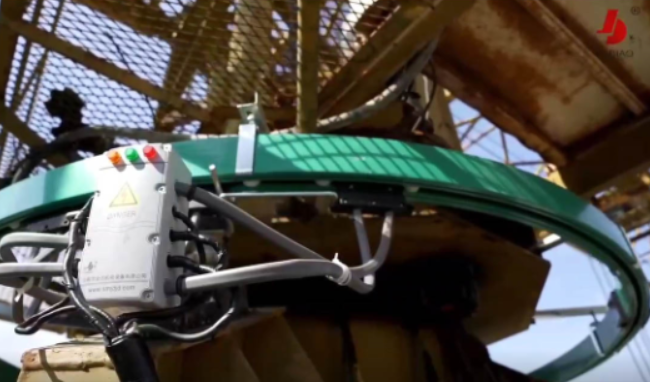

    The Circular Arc Rail Busbar is a new type of power supply device, which is connected with the collector by the cable and provides the tower crane with uninterrupted power supply through the closed-loop slewing busbar, so as to avoid the phenomenon that the cable is often twisted and broken when the tower crane is operating. It has the function of taking power from the original tower crane slip ring.


    Technical Data

    SR. NO.ITEMPARAMETER
    1Rated Current165A
    2Rated Voltage380V
    3Power Supply ModeThree-phase Five-wire
    4Dimension2778x100x66 mm
    5Bending Radius1300 mm
    6Weight9kg
    7Insulation Resistance≥ 0.5MΩ
    8Dielectric StrengthAC 3750V, no breakdown or flickering in 1 minute
    9Protection Grade of ShellIP23
    10Electrothermal Stability20 times/rated 1 s
    11Rated Short-time Withstand Current & Rated Peak Withstand Current4.5KA / 6.75KA
    12Ambient Features1, Heat Resistance Test: Normal Type +55 ℃
    2, Low Temperature Resistance Test: -30 ℃
    3, Heat and Humidity Resistance Test: Relative Humidity 95%, +25 ℃
    4, Atmospheric Pressure: 86~106 KPa
    13Flame ResistanceV0 (Self Extinguishing)
    14Parameter of Transmission LineCompliant with National Standard GB/T3048 <cable conductor>;
    Resistance ≤ 0.028 Ωmm²/m ( +20 ℃)
    15Current CollectorTraction Force: F < 80N;
    Traveling Speed: V ≤ 100 m/min
    16Electric Brush ParameterAbrasion after operating 2000km: < 0.8 mm;
    Effective Abrasion of Brush: 5~7 mm;
    Effective Working Pressure: 1.8~4.08 N/cm²
